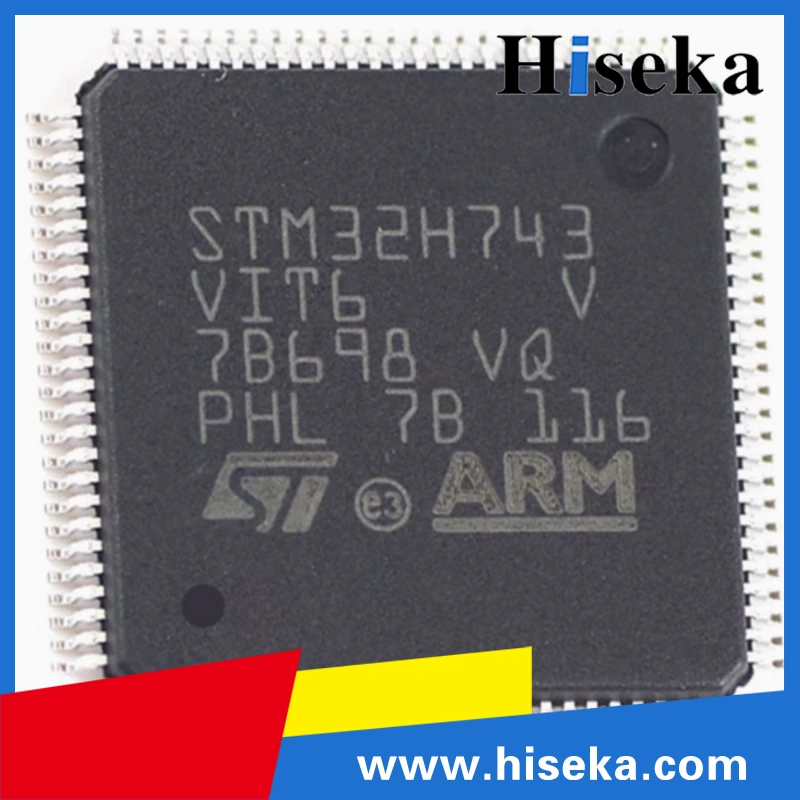

**Technical Data Sheet: STM32H743VIT6 Microcontroller**
**Introduction**
The STM32H743VIT6 is a high-performance microcontroller from STMicroelectronics, part of the STM32H7 Series. This device is designed for applications that demand extreme processing power, large memory capacity, and advanced connectivity options. The STM32H743VIT6 is built on a 400 MHz ARM Cortex-M7 core with DSP and FPU instructions, complemented by an ARM Cortex-M4 core, providing a dual-core solution for maximum processing efficiency.
**Core Features**
- **Dual-Core Architecture**: Featuring an ARM Cortex-M7 core operating at up to 400 MHz, with a single-precision FPU (Floating-Point Unit) and DSP instructions, alongside an ARM Cortex-M4 core running at 256 MHz for handling lower-power or real-time tasks.
- **High Memory Capacity**: Integrated with 1 MB of SRAM, 2 MB of Flash memory, and a flexible external memory interface supporting SDRAM, SRAM, NOR/NAND Flash, and PSRAM, allowing for the expansion of memory capacity as needed.
- **Advanced Connectivity**: Offers a wide range of connectivity options including USB 3.1/2.0 OTG Full-Speed/High-Speed, Ethernet MAC with IEEE 1588-2008 support, Camera interface (MIPI CSI-2), and various serial communication interfaces such as UART, SPI, I2C, and SAI.
- **High-Speed Analog Performance**: Equipped with high-resolution ADCs (up to 16-bit, 3.6 MSPS), DACs, and a rich set of analog peripherals, enabling precise signal processing and control in applications requiring high analog performance.
- **Security Features**: Incorporates advanced security mechanisms, including a cryptographic accelerator supporting AES, DES, TDES, SHA-1, SHA-2 (224, 256), RNG, and hash modules, ensuring data protection and integrity.
- **Low Power Consumption**: Offers multiple low-power modes, allowing for power-efficient operation in battery-powered or energy-constrained applications.
**Applications**
- **Industrial Automation and Control**: Perfect for demanding industrial applications that require high processing power, advanced connectivity, and real-time capabilities.
- **Medical Electronics**: Suitable for portable medical devices, patient monitors, and diagnostic equipment that demand high reliability, precision, and security.
- **Audio and Video Processing**: Capable of handling complex audio and video processing tasks thanks to its high processing power and advanced multimedia peripherals.
- **Automotive Systems**: Ideal for in-vehicle infotainment systems, advanced driver-assistance systems (ADAS), and electric vehicle control units.
- **Smart Cities and IoT**: Can be used in smart city infrastructure, connected devices, and IoT gateways requiring secure and reliable communication.
**Development Support**
STMicroelectronics provides a comprehensive ecosystem of development tools, software libraries, and evaluation boards to support the STM32H743VIT6. The STM32CubeMX configuration tool simplifies the initialization of peripherals and middleware, while the STM32Cube HAL (Hardware Abstraction Layer) library accelerates application development by providing a standardized API for accessing microcontroller hardware.
**Conclusion**
The STM32H743VIT6 microcontroller is a powerful and versatile solution for applications requiring extreme processing power, high memory capacity, and advanced connectivity options. Its dual-core architecture, high-speed analog performance, and extensive security features make it an ideal choice for industrial, medical, automotive, and IoT applications. With comprehensive development support from STMicroelectronics, the STM32H743VIT6 simplifies the design process and accelerates time-to-market for next-generation embedded systems.
