**Technical Data Sheet: LL4148-GS08**

**Product Overview**

The LL4148-GS08 from Vishay Semiconductors is a surface mount small signal fast switching diode designed for a wide range of electronic applications. This diode features a unidirectional single configuration with silicon epitaxial planar coating, ensuring high performance and reliability. Qualified under the Automotive grade AEC-Q101 standard, the LL4148-GS08 is suitable for use in demanding automotive and industrial environments.

**Key Specifications**

- **Voltage Ratings**:
  - Maximum Repetitive Reverse Voltage (VRRM): 100V
  - Peak Forward Surge Current (IFSM): 2A at tp 1μs
  - Forward Voltage (VF): 1000mV at IF 50mA

- **Current Ratings**:
  - Average Forward Current (IFAV): 150mA
  - Forward Continuous Current (IF): 500mA

- **Thermal Characteristics**:
  - Power Dissipation (PV): 500mW
  - Operating Junction Temperature (Tj): 175°C

- **Switching Characteristics**:
  - Reverse Recovery Time (trr): 8ns (also available in 4ns variant)

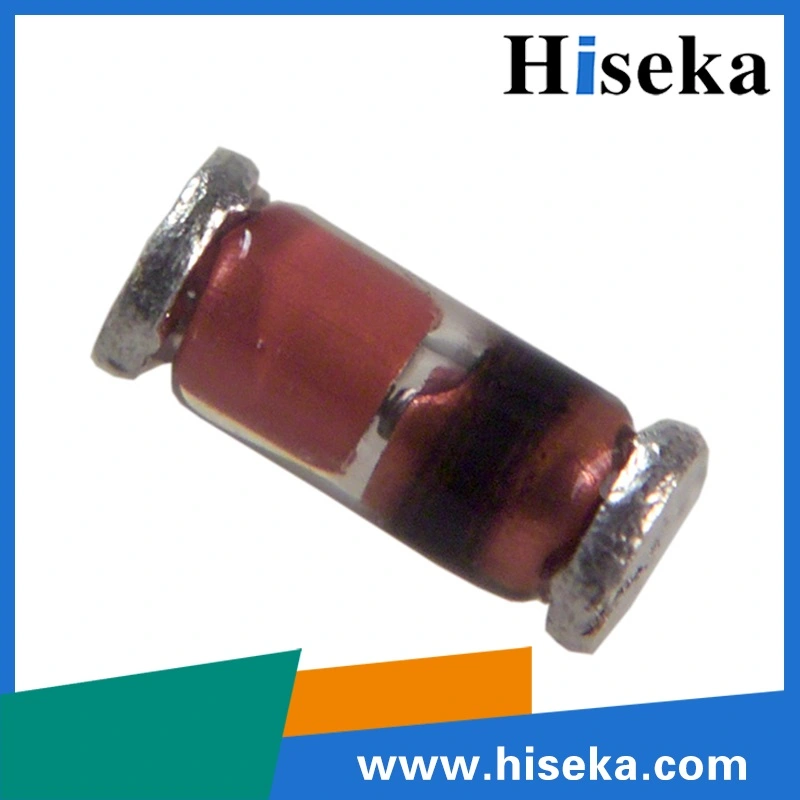

- **Physical Dimensions**:
  - Package Type: SOD-80 (MiniMELF)
  - Case Style: MiniMELF Glass case (SOD80)
  - Dimensions: 1.6mm (Dia.) x 3.7mm
  - Weight: Approx. 31mg
  - Pin Count: 2 pins

**Features**

- **Fast Switching**: The LL4148-GS08 exhibits fast switching speeds, making it ideal for applications requiring rapid signal switching.
- **AEC-Q101 Qualified**: Compliant with automotive standards, ensuring reliability in harsh automotive environments.
- **Low Forward Voltage Drop**: With a forward voltage drop of 1000mV at 50mA, the diode minimizes power loss in circuits.
- **High Temperature Operation**: Capable of operating at temperatures up to 175°C, ensuring stable performance in demanding conditions.
- **Surface Mount Package**: SOD-80 package simplifies PCB assembly and reduces overall system size.

**Applications**

The LL4148-GS08 is widely used in various electronic circuits, including:

- **Signal Processing**: Suitable for high-speed signal switching and noise suppression.
- **Power Management**: Efficient voltage conversion and regulation in power supply systems.
- **Consumer Electronics**: Found in portable devices, smartphones, and other consumer gadgets.
- **Automotive Electronics**: Used in automotive systems for voltage regulation, signal switching, and other critical functions.
- **Communications Equipment**: Essential for high-frequency switching and signal integrity in communication devices.

**Conclusion**

The LL4148-GS08 from Vishay Semiconductors is a high-performance small signal fast switching diode that combines fast switching speeds, low forward voltage drop, and high temperature operation capabilities. Its AEC-Q101 qualification and surface mount SOD-80 package make it an ideal choice for a wide range of electronic applications, including automotive, consumer electronics, and communications equipment. With its robust design and reliable performance, the LL4148-GS08 is a valuable component in modern electronic systems.
