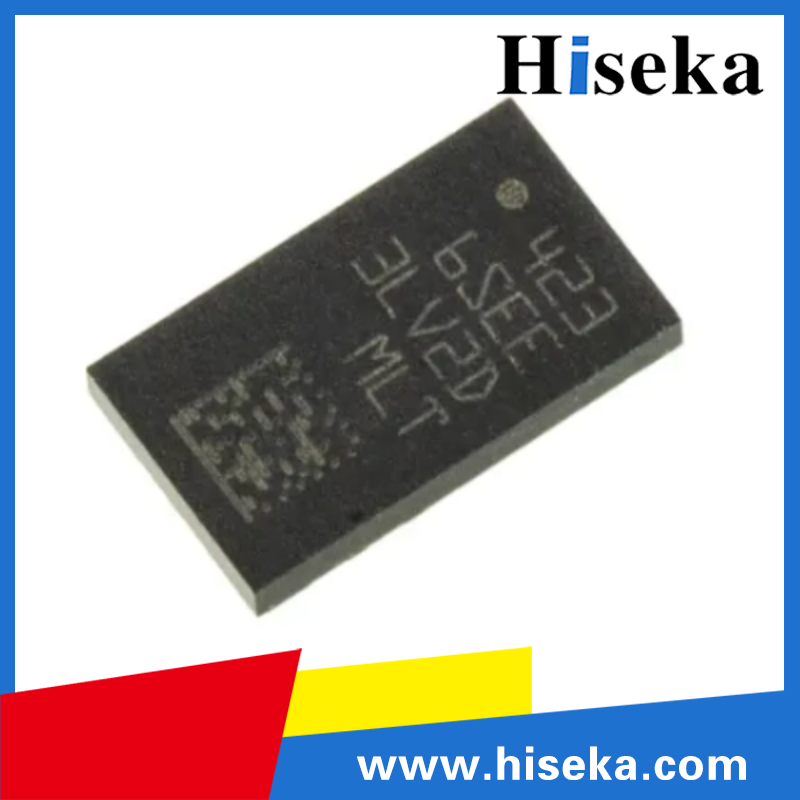

**Technical Overview: LIS3LV02DL Ultra-Low-Power High-Accuracy MEMS Accelerometer**
**Introduction**
The LIS3LV02DL is a high-accuracy, ultra-low-power MEMS (Micro-Electro-Mechanical Systems) accelerometer designed by STMicroelectronics. This sensor is ideal for applications where precise motion detection, low power consumption, and small form factor are essential requirements. With its advanced sensor technology, the LIS3LV02DL offers outstanding performance for tilt sensing, motion activation, and low-g acceleration measurement in consumer electronics, medical devices, industrial automation, and many other applications.
**Core Features**
- **Ultra-Low Power**: The LIS3LV02DL operates at exceptionally low power levels, enabling it to be used in battery-powered devices with minimal impact on battery life. It features multiple power-saving modes, including low-power standby and active modes, allowing users to tailor power consumption to their specific application needs.
- **High Accuracy**: With its high sensitivity and low noise, the LIS3LV02DL provides precise measurements of acceleration in all three axes (X, Y, Z). The sensor is calibrated at the factory to ensure accurate readings over its full dynamic range.
- **Wide Measurement Range**: The LIS3LV02DL supports multiple selectable full-scale ranges, allowing it to be optimized for a wide variety of acceleration levels. This feature enables it to measure accelerations from ±1.5g to ±6g, making it suitable for both low- and high-impact applications.
- **Small Package Size**: Packaged in a compact LGA (Land Grid Array) or similar form factor, the LIS3LV02DL is easily integrated into space-constrained designs. Its small size also helps reduce the overall system cost by minimizing board space requirements.
- **I2C/SPI Interface**: The LIS3LV02DL communicates with a host processor or microcontroller via a standard I2C or SPI digital interface. This versatility makes it easy to integrate into a wide range of electronic systems, regardless of the chosen communication protocol.
- **Digital Output**: The sensor outputs acceleration data in digital format, eliminating the need for external analog-to-digital converters (ADCs). This feature simplifies system design and reduces component count, further reducing cost and complexity.
- **Self-Test Function**: The LIS3LV02DL incorporates a self-test feature that allows users to verify the functionality of the sensor during system testing or at runtime. This feature improves reliability and reduces the risk of undetected failures.
**Applications**
- **Consumer Electronics**: The LIS3LV02DL is ideal for use in smartphones, tablets, and other portable devices, where accurate motion sensing and low power consumption are crucial.
- **Medical Devices**: Its high accuracy and small size make the LIS3LV02DL well-suited for medical applications such as fall detection, posture monitoring, and sleep analysis.
- **Industrial Automation**: The sensor can be used in industrial machines and robots for precision motion control, tilt sensing, and machine health monitoring.
- **Automotive**: In automotive systems, the LIS3LV02DL can be used for advanced driver assistance systems (ADAS), such as collision detection and rollover protection.
**Development Support**
STMicroelectronics provides a range of resources to support the development of systems using the LIS3LV02DL, including:
- **Datasheets**: Comprehensive technical specifications and functional descriptions.
- **Application Notes**: Detailed design guides and tips for optimizing sensor performance in specific applications.
- **Evaluation Boards**: Pre-assembled evaluation kits, allowing developers to quickly evaluate the sensor's capabilities and integrate it into their designs.
- **Software Libraries**: Code libraries and drivers to simplify integration with popular microcontrollers and development environments.
- **Technical Support**: Access to a team of technical experts for design assistance, troubleshooting, and customization support.
**Conclusion**
The LIS3LV02DL ultra-low-power high-accuracy MEMS accelerometer from STMicroelectronics offers an excellent combination of performance, low power consumption, and ease of integration. Its versatility and wide range of applications make it an ideal choice for designers seeking a reliable and cost-effective solution for precision motion sensing in a variety of industries.
