**Technical Data Sheet: ATmega8A-AU Microcontroller**
**Overview**

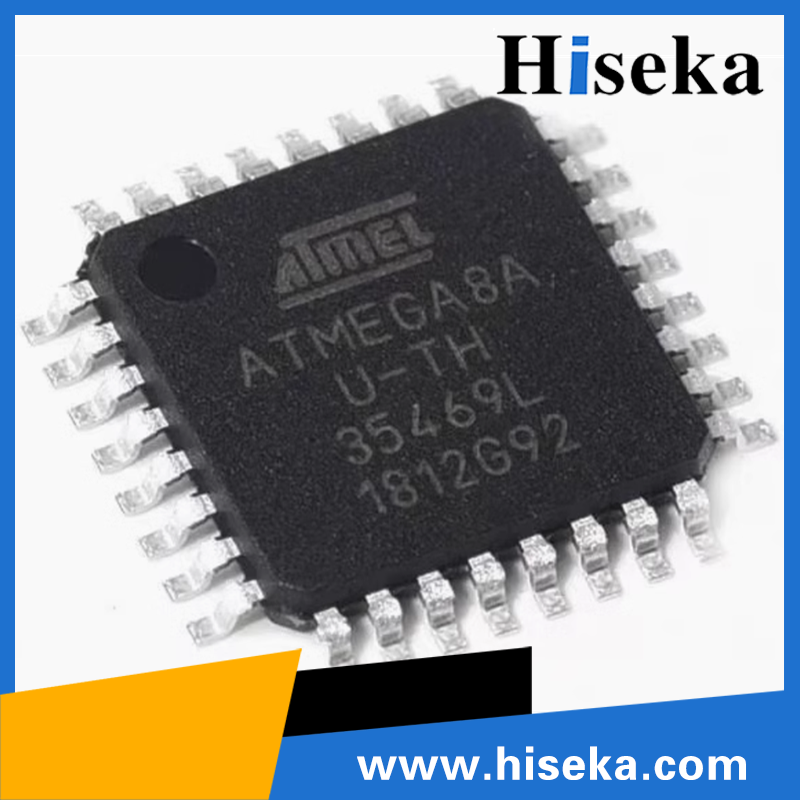

The ATmega8A-AU is a low-power, high-performance 8-bit AVR RISC-based microcontroller from Atmel (now part of Microchip Technology). It belongs to the AVR family of microcontrollers, renowned for their combination of advanced features, high reliability, and ease of programming. The ATmega8A-AU is specifically designed for applications that require both computational power and low power consumption, making it ideal for a wide range of embedded systems.
**Core Features**
- **AVR Architecture**: Based on the enhanced RISC architecture, the ATmega8A-AU delivers up to 1 MIPS (Million Instructions Per Second) per MHz, allowing for efficient and fast code execution.
(-ISP **)Flash flash Memory memory**: Incorporates 8KB of in-system programmable, enabling code development and upgrades without the need for external memory devices.
- **SRAM and EEPROM**: Equipped with 512 bytes of SRAM for data storage during program execution, and 512 bytes of EEPROM for non-volatile data storage.
- **I/O Ports**: Provides multiple I/O ports with configurable pull-up resistors, supporting a variety of interface options for peripherals and sensors.
- **Peripheral Features**:
- **Timers/Counters**: Includes multiple timers and counters for timing and control tasks, including a 16-bit Timer/Counter with PWM (Pulse Width Modulation) capability.
- **USART**: Universal Synchronous/Asynchronous Receiver/Transmitter for serial communication.
- **ADC (Analog-to-Digital Converter)**: A 10-bit ADC with up to 8 channels, allowing for analog signal monitoring and processing.
- **SPI and TWI (I2C)**: Serial Peripheral Interface and Two-Wire Interface for communication with other devices.
**Low-Power Capabilities**
The ATmega8A-AU is designed with power efficiency in mind, featuring various sleep modes to reduce power consumption when not in active use. These sleep modes include Power-down, Power-save, Standby, and Extended Standby, allowing the microcontroller to enter a low-power state while maintaining essential functions or waking up on specific events.
**Programming and Debugging**
- **In-System Programming (ISP)**: Enables programming and reprogramming of the flash memory through dedicated pins, eliminating the need for external programming hardware.
- **Debugging Support**: Compatible with various debuggers and development tools, such as AVR Studio (now Atmel Studio), allowing for efficient code development and debugging.
**Applications**
- **Consumer Electronics**: Ideal for low-cost, battery-powered devices like remote controls, toys, and portable electronics.
- **Industrial Control**: Suitable for automation and monitoring systems requiring high reliability and low power consumption.
- **Automotive Electronics**: Can be used in automotive accessories and systems that demand robust performance and low power modes.
- **Medical Devices**: Perfect for portable medical equipment and wearable health monitors due to its low-power design and high reliability.
**Conclusion**
The ATmega8A-AU is a versatile and powerful 8-bit AVR microcontroller that offers a balance of advanced features, high performance, and low power consumption. Its rich set of peripherals, including timers, ADC, USART, SPI, and TWI, makes it suitable for a wide range of embedded systems applications. With in-system programming and support for various development tools, the ATmega8A-AU is an excellent choice for designers seeking a reliable, cost-effective microcontroller solution.
