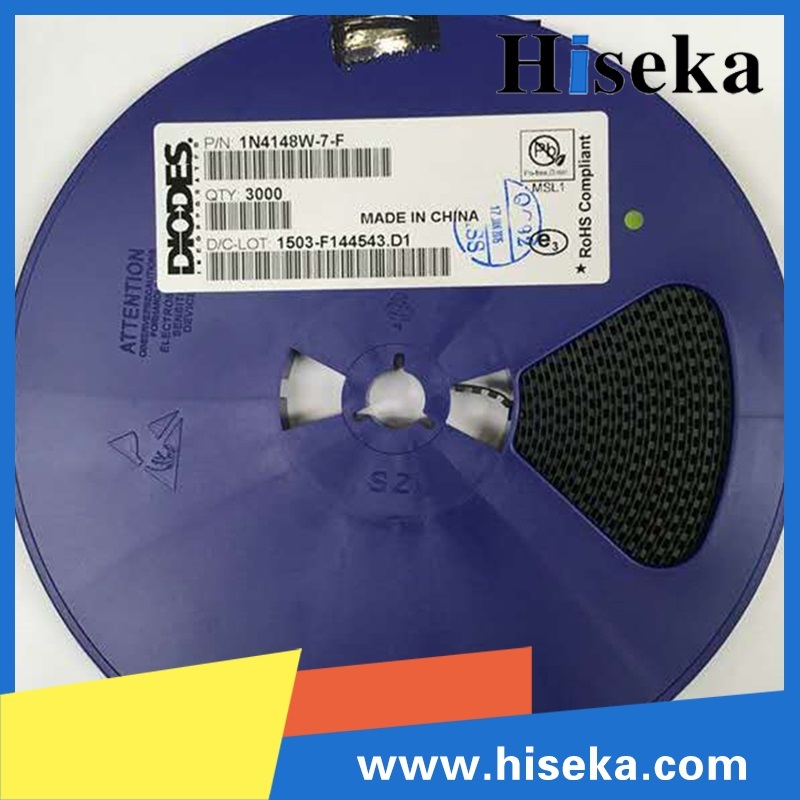

**Technical Datasheet for 1N4148W-7-F High-Speed Switching Diode**
**I. Introduction**
The 1N4148W-7-F is a high-performance, general-purpose switching diode designed for use in a variety of electronic circuits requiring fast switching speeds and reliable operation. Manufactured to meet strict quality standards, this diode offers excellent forward and reverse characteristics, making it ideal for applications where low leakage currents and high switching speeds are crucial.
**II. Key Features**
- **High Switching Speed**: Optimized for fast switching, the 1N4148W-7-F offers minimal reverse recovery time, enabling efficient signal processing in high-frequency circuits.
- **Low Forward Voltage Drop**: Reduces power loss in the forward-conducting state, improving overall circuit efficiency.
- **Low Reverse Leakage Current**: Minimizes undesired current flow when the diode is reverse-biased, enhancing circuit stability and reducing power consumption.
- **Temperature Stability**: Operates reliably over a wide temperature range, ensuring consistent performance in diverse environmental conditions.
- **Surface Mountable Package**: The 1N4148W-7-F is packaged in a compact surface-mount format (SMF), simplifying PCB layout and assembly processes.
- **RoHS Compliant**: Meets environmental regulations, ensuring compliance in eco-conscious applications.
**III. Electrical Specifications**
- **Forward Voltage Drop (Vf)**: Typically less than 0.7V at 10mA forward current (IF)
- **Reverse Leakage Current (IR)**: Typically less than 5nA at -20V reverse voltage (VR)
- **Maximum Forward Current (IFM)**: 400mA (continuous)
- **Maximum Reverse Voltage (VRM)**: 100V
- **Junction Temperature (Tj)**: Up to 150°C
- **Capacitance (Cj)**: Low, typically specified in datasheets for specific conditions
- **Reverse Recovery Time (trr)**: Fast, optimized for high-speed switching applications
**IV. Applications**
- **High-Speed Switching Circuits**: Ideal for use in high-frequency signal processing, including RF circuits, digital logic gates, and timing circuits.
- **Clipping and Clamping Circuits**: Used to limit voltage excursions in protective and signal-conditioning circuits.
- **Detector Circuits**: In RF and microwave applications, the 1N4148W-7-F can be used as a detector diode for converting AC signals to DC.
- **Power Supplies**: Assists in the regulation and stabilization of voltage in power supply circuits.
- **General-Purpose Electronics**: Suitable for a wide range of electronic devices and circuits requiring fast-switching diodes.
**V. Package Information**
- **Package Type**: SMF (Surface Mount Flatpack)
- **Lead Finish**: May vary, commonly available in gold or tin-lead finishes, depending on manufacturer and application requirements.
- **Dimensions**: Precise package dimensions are provided in the manufacturer's datasheet, ensuring compatibility with PCB footprints.
**VI. Conclusion**
The 1N4148W-7-F is a versatile, high-speed switching diode that offers exceptional performance in a wide range of electronic applications. Its low forward voltage drop, low reverse leakage current, and fast switching speeds make it an excellent choice for designers looking to optimize the performance of their circuits. With its RoHS-compliant design and compact surface-mount package, the 1N4148W-7-F is easy to integrate into modern electronic systems.
