**Technical Datasheet for ATmega328P-AU Microcontroller**
**I. Introduction**

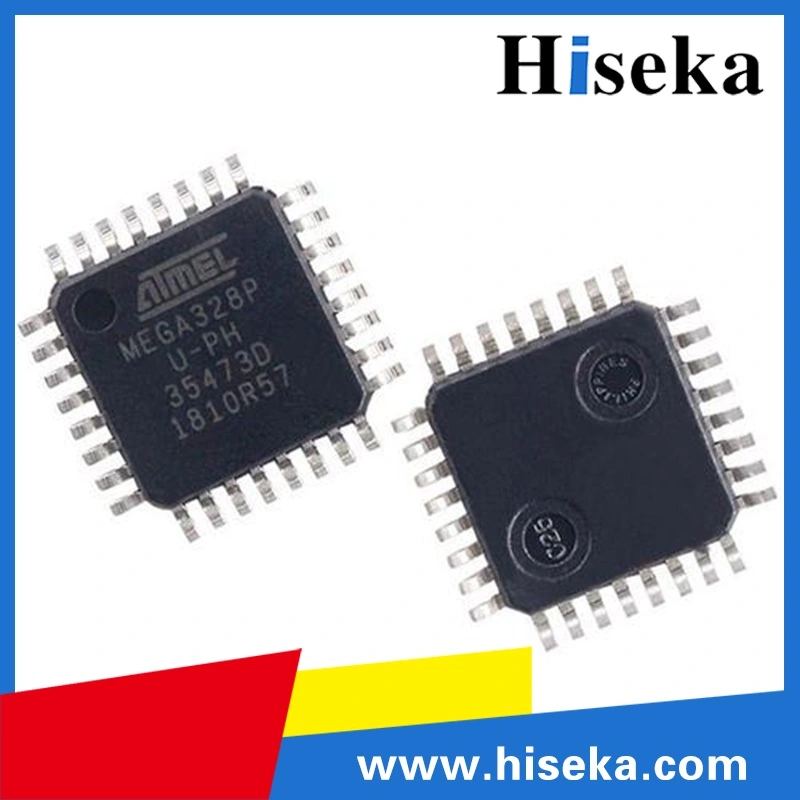

The ATmega328P-AU is a low-power CMOS 8-bit microcontroller belonging to the AVR family. Developed by Atmel (now part of Microchip Technology), this device combines powerful features with robust design, making it a popular choice for a wide range of embedded systems and applications. The ATmega328P-AU offers a balance of performance, flexibility, and cost-effectiveness, making it ideal for projects such as Arduino Uno, which is based on this microcontroller.
**II. Key Features**
- **High Performance**: Operates at a clock frequency of up to 20 MHz, enabling fast instruction execution and efficient program execution.
- **In-System Programming (ISP)**: Supports ISP through SPI and other interfaces, allowing for easy and convenient programming without the need for external hardware programmers.
- **Power-efficient**: Features multiple power-saving modes, including Power-down, Idle, ADC Noise Reduction, Standby, and Extended Standby, to minimize power consumption.
- **High Endurance Flash**: The on-chip 32KB of ISP Flash memory can be erased and rewritten up to 10,000 times, ensuring long-term reliability.
- **Rich Peripherals**: Includes 2KB of SRAM, 1KB of EEPROM, 23 general-purpose I/O lines, 32 general-purpose working registers, a USART, a SPI serial port, a two-wire serial interface, a 6-channel 10-bit ADC, and a programmable watchdog timer with internal oscillator.
- **External and Internal Interrupts**: Offers 21 interrupt sources, including external, pin change, and timer/counter interrupts, for real-time control and event-driven programming.
- **High I/O Flexibility**: I/O pins can be configured as digital inputs or outputs, or as analog inputs for the ADC. Some pins also support PWM, USART, SPI, and I2C communication.
**III. Electrical Specifications**
- **Operating Voltage**: 1.8V to 5.5V (ATmega328P-AU supports a wide voltage range, making it suitable for various applications)
- **Digital I/O Current**: 40mA per pin (max), with a total current limit of 200mA for all ports combined.
- **Flash Endurance**: 10,000 write/erase cycles
- **Flash Data Retention**: 40 years at 85°C
- **Clock Sources**: Internal calibrated oscillator, external crystal or resonator, or external clock source.
**IV. Programming and Debugging**
- **Programming Interfaces**: Supports ISP using SPI, JTAG (optional), and in-circuit serial programming (ICSP).
- **Development Tools**: Compatible with various AVR programmers and debuggers, as well as popular development environments such as Atmel Studio, Arduino IDE, and more.
- **Debugging**: Optionally supports on-chip debugging with JTAG interface, enabling detailed debugging and analysis of program execution.
**V. Applications**
- **Embedded Systems**: Ideal for a wide range of embedded systems, including consumer electronics, robotics, industrial automation, and home automation.
- **Educational Projects**: Widely used in educational settings, particularly with Arduino platforms, to teach microcontroller programming and embedded systems design.
- **DIY Projects**: Suitable for hobbyists and makers looking to build custom electronics and interactive projects.
**VI. Conclusion**
The ATmega328P-AU microcontroller, with its powerful features, high performance, and flexibility, is a popular choice for a variety of embedded systems and applications. Its support for in-system programming, rich peripherals, and easy-to-use development tools make it an excellent platform for designing and prototyping embedded systems. Whether you're building a robotic project, creating an interactive device, or learning microcontroller programming, the ATmega328P-AU offers a solid foundation to build upon.
